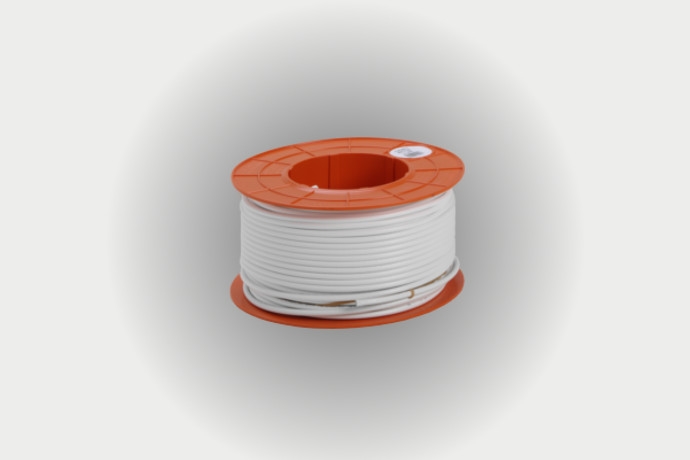

Coaxial Cable DG80 PVC A 150M Hvid Cavel

RG Ref.		RG 59
Class CPR acc. to UE 305/2011 (DoP)		Eca
Availability		in stock
Application		4K-UHD
		Indoor Installation
acc. to Standard		EN50117-9-2
		CEI-UNEL 36762
Reaction to Fire		EN50575
CONSTRUCTION DATA
Inner Conductor	Ø mm	0,80
	material	Cu
Dielectric	Ø mm	3,50
	material	PEG
Film Foil Laminate	material	APA
Braid	material	CuSn
Braid Optical Coverage	%	65
Diameter over Braid	Ø mm	4,00
Outer Sheath	Ø mm	5
	material	PVC
PHYSICAL DATA
Copper Content	kg/km	11,1
Cable Weight	kg/km	25,9
Min bending radius x 1/n	mm	25/50
Max.Tensile Strength	N	90
ELECTRICAL DATA
Impedance	Ohm	75±3@200 MHz
Capacitance (@1kHz)	pF/m	52 ± 2
Velocity Ratio	%	85
Attenuation (at 20°C )
at 5 MHz	dB/100m	2,1
at 10 MHz	dB/100m	3,0
at 30 MHz	dB/100m	4,4
at 50 MHz	dB/100m	5,7
at 200 MHz	dB/100m	11,0
at 300 MHz	dB/100m	13,5
at 470 MHz	dB/100m	16,8
at 690 MHz	dB/100m	20,4
at 1000 MHz	dB/100m	24,9
at 1750 MHz	dB/100m	33,5
at 2150 MHz	dB/100m	37,4
at 2400 MHz	dB/100m	39,6
at 3000 MHz	dB/100m	44,8
Structural return loss (SRL)
at 5 - 470 MHz	dB	>30
at 470 - 1000 MHz	dB	>28
at 1000 - 2000 MHz	dB	>26
at 2000 - 3000 MHz	dB	>22
Transfer Impedance (Zt)	Class	B
5 - 30 MHz	mOhm/m	< 9
Screening Attenuation (SA)	Class	A
at 30 - 1000 MHz	dB	>90
at 1000 - 2000 MHz	dB	>75
at 2000 - 3000 MHz	dB	>65
DC Conductor Resistance inner/outer	Ohm/km	35,0 / 18,6
Loop resistance	Ohm/km	53,6
Sheat Insulation voltage (spark test)	kV	2,5
Maximum current (Ieff)	A	4
