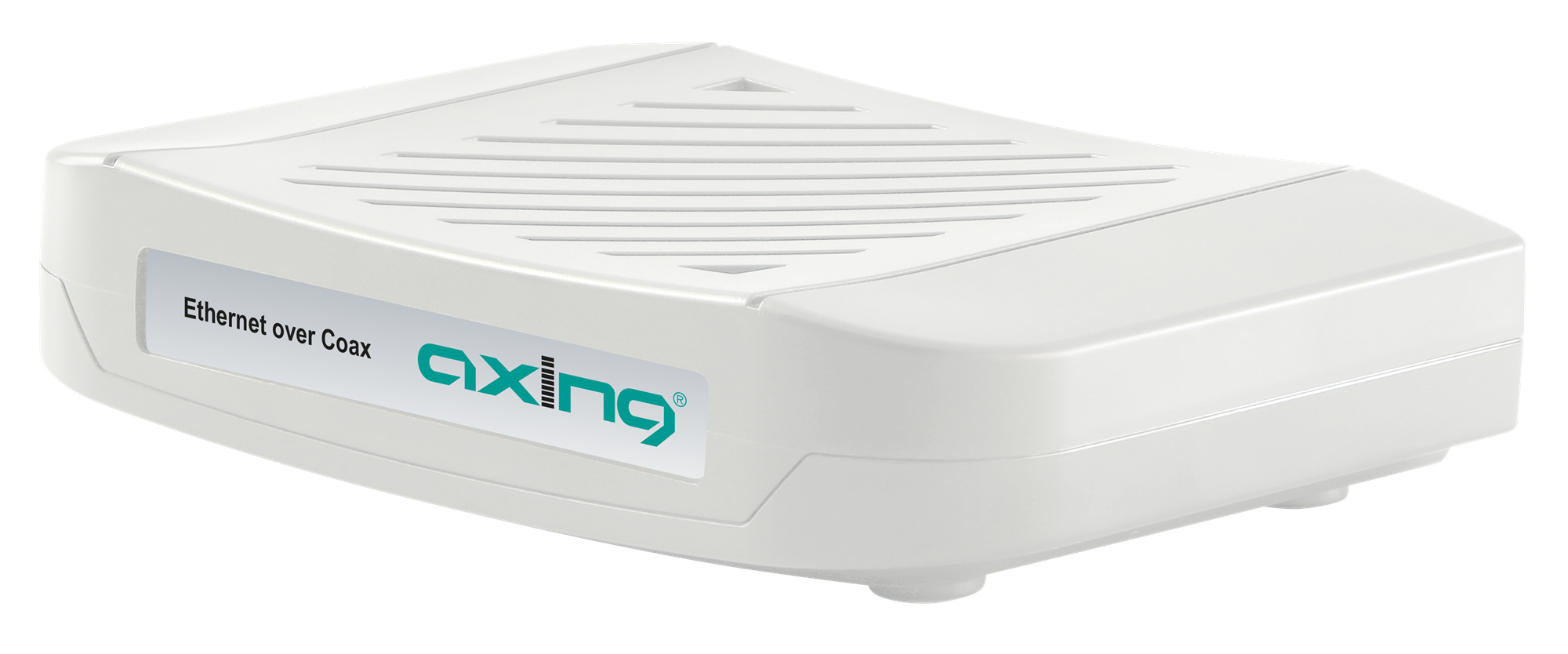

EOC 2-32 1800MB Wifi
| Frequency range | 5…204 MHz |
|---|---|
| Maximum allowed attenuation in coaxial network | 77 dB |
| Transmission level in coaxial network | 113 dBµV ± 1dB |
| Data over Coax | |
| Standard | ITU-T G.9960/G.9961 G.hn over Coax |
| Net data rate (PHY) | 1800 Mbps* |
| Encryption | AES 128 Bit |
| Max. number of devices in coax network | 16 |

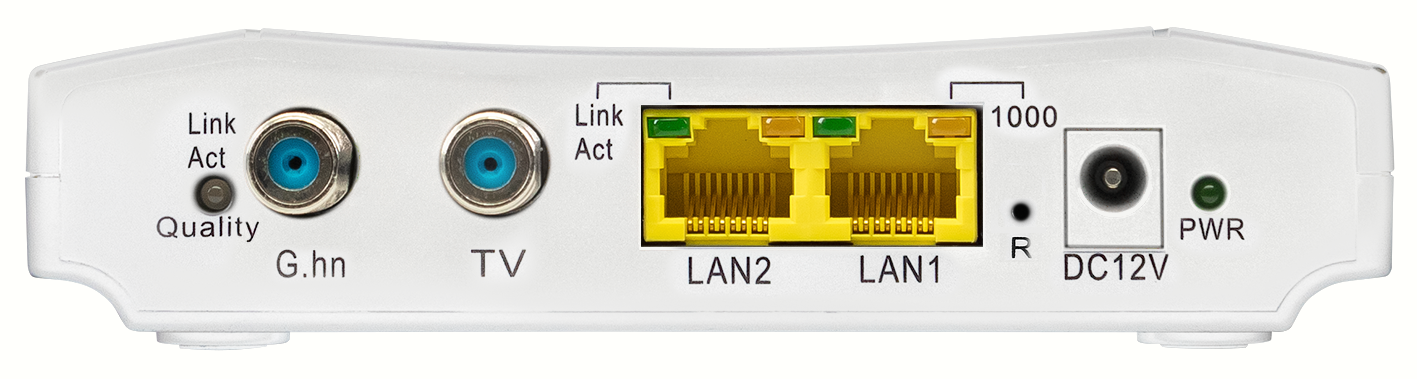

| Connectors | 2 × F-female |
| Interfaces | |
| Ethernet connectors | 2 × RJ 45 |
| Ethernet standards |
IEEE 802.3u 100BaseT Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet |
| WiFi standard | IEEE 802.11ac wave 2 (MU-MIMO) |
| WiFi encryption | WEP, WPA/WPA2, WPA/WPA2 m. PSK |
| WiFi frequency range |
2400 … 2484 MHz @ 2.4 GHz 5150 … 5350 MHz | 5470 … 5725 MHz @ 5 GHz |
| Max. transmitted power |
20 dBm (EIRP) @ 2400 … 2484 MHz 23 dBm (EIRP) @ 5150 … 5350 MHz 30 dBm (EIRP) @ 5470 … 5725 MHz |
| General | |
| Operating temperature range | 0° C … 50 °C |
| Operating voltage | 12 VDC |
| Power consumption | 8 W |
| Dimensions (W × H × D) appr. | 130 x 95 x 32 mm |
| External accessories | |
| Switching power supply | 100…240 V~/50…60 Hz | 12 V=/1 A |
| General | |
| Comments | * The data rate indicates the data throughput between the EoC devices. For technical reasons, a maximum of 1000 Mbps is available at each Ethernet interface. |
