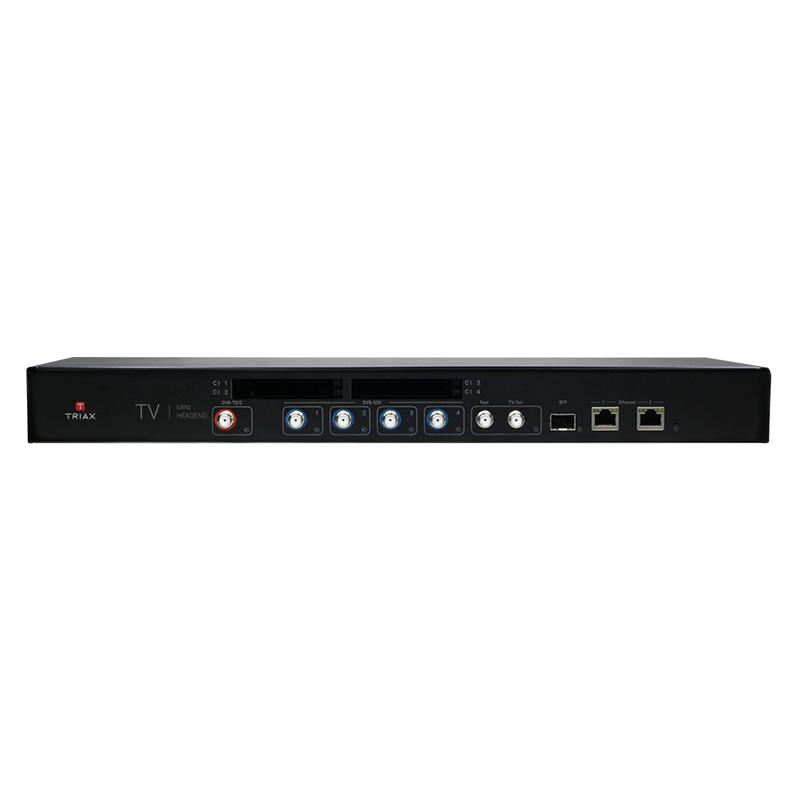

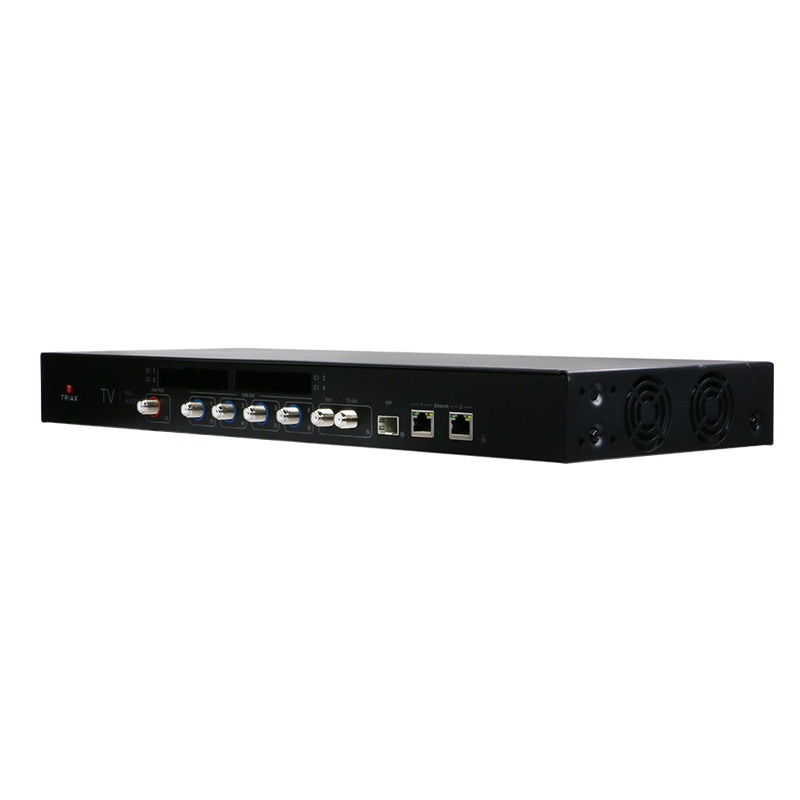

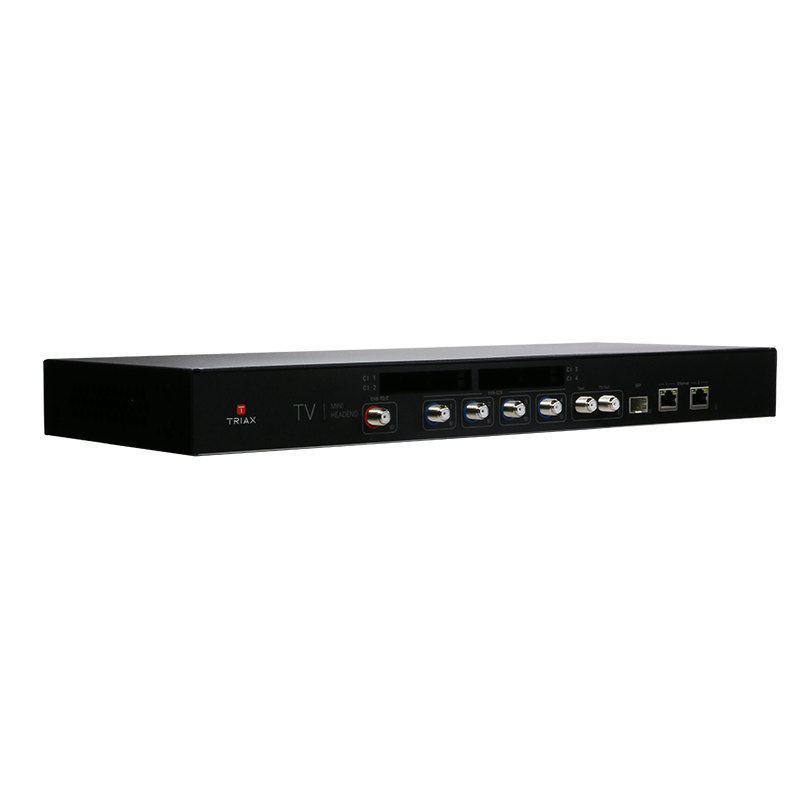

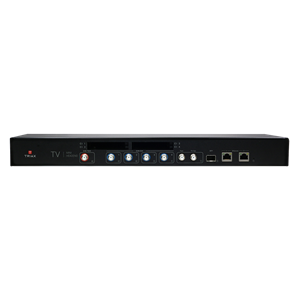

TDmH Mini Headend – 14 STC with CI

TDmH Mini Headend – 14 STC with CI

TDmH Mini Headend

Built on the same cutting-edge and well-tested software platform used for TDcH, but with reduced functionality to meet the requirements for an entry-level headend. Complimentary updated software offers new and existing customers additional functions, benefits, and powerful hardware configurations to match your requirements.

Ring for pris!
Antal
Køb
Varenummer 492774

Datablad
Manual

Compact excellence

  • Exquisite engineering, finely tuned for perfect performance
  • Your natural choice for swift, efficient TV distribution
  • Save time and costs, with fast, easy installation and remote management
  • Compact design fits elegantly into 19” racks or as a wall mount unit
  • Reliable, innovative headend expertise from TRIAX

Smooth integration

  • Optimised channel setup with advanced multiplexing and Service Pool technology
  • Integrated SCR multiswitch for cost, time and space saving
  • No need for retuning TV sets in rooms thanks to SID and PID Management
  • EPG Management ensures full Electronic Program Information (EPG) for better user experience
  • Central decryption with CI slots, Free-To-Air version available
  • Option for scrambling of premium services, supporting scrambling of Philips TV sets. Upcomingsupporting scrambling for LG and Samsung TV sets
  • Multiple language service allows for multiple distribution of a service with different audio(language) tracks
  • IP-in and IP-out for receiving and streaming services. Possibility for simultaneous IP-in and IP-outthrough the same interface with optional VLAN tags for separating the in and out streams

Integrated SCR Multiswitch

  • Increases the number of satellite positions that can be received in the TDcH/TDmH
  • Increases the number of international TV services that can be distributed
  • Save time, cost and space with less cabling and no need for an external multiswitch
  • Reduced hardware for a cost optimised and compact solution

Service Pool and Multiplex technology

  • 8 DVB-S/S2/S2X and 6 DVB-T/T2/C input signals
  • 8 QAM or COFDM full band modulators (switchable)
  • 48 IP-in SPTS and MPTS UDP/RTP (license required)
  • 48 IP-out SPTS UDP/RTP (license required)
  • 4 x CI interfaces for CAM
  • Scrambling VSecure (Philips) / (licence required)
  • Scrambling Pro:Idiom (LG) / (special variant and licence required)
  • Multiplexing at both RF output, IP output, scrambler and CAM (CI interface)
  • Optimised service line-up within the available input and output modules
  • More relevant TV services due to service multiplexing

Energy saving – long-term reliability

  • Low power consumption
  • Temperature controlled cooling system with integrated fans - increases the service life of the equipment
  • The cooling system supports 19“ rack mounting as well as wall mounting
