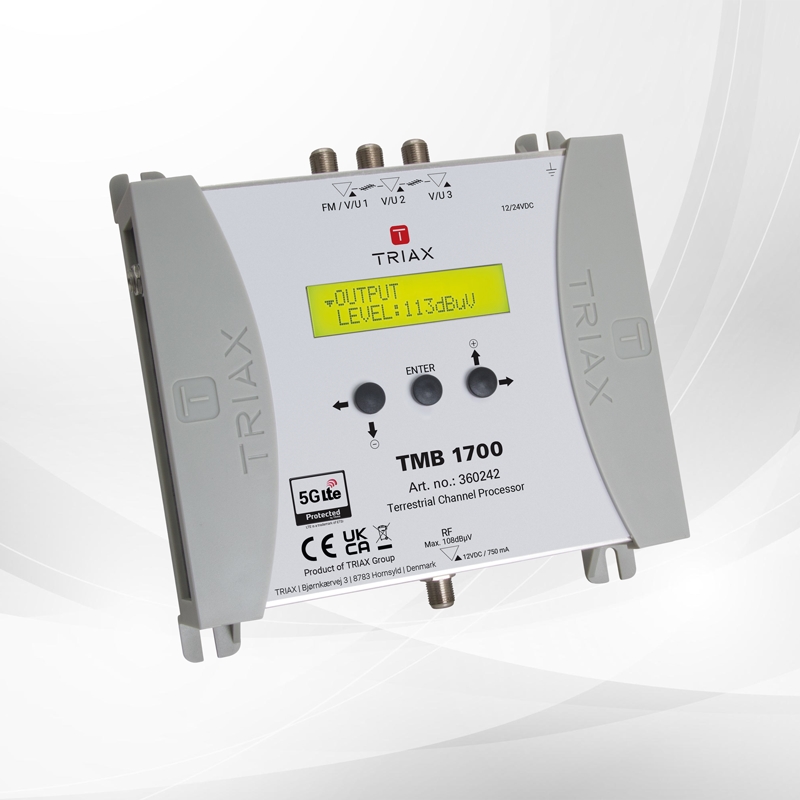

TMB 1700 Terrestrial Channel Processor

Smart & Automatic CHANNEL SCAN
Can process and convert more than 50 channels (consisting out of 32 filters, each up to 6 MUXes wide)
Can process S-Band output channels
5G LTE Protection (694MHz)
Sharpest filters on the market (50 dB on adjacent channels)
Real-time AGC on all individual multiplexes
Complete flexibility in assigning filters from any input. Each channel can be frequency shifted to any other channel in the VHF or UHF band (Flex Matrix)
To avoid unauthorised persons changing the settings, the TMB 1700 can be locked with a security code
Made in Europe, for worldwide application
1 FM/VHF/UHF & 2 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
3 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
Powered via output F-connector
Product dimensions (H X W X D): 165mm x 190mm x 59mm
