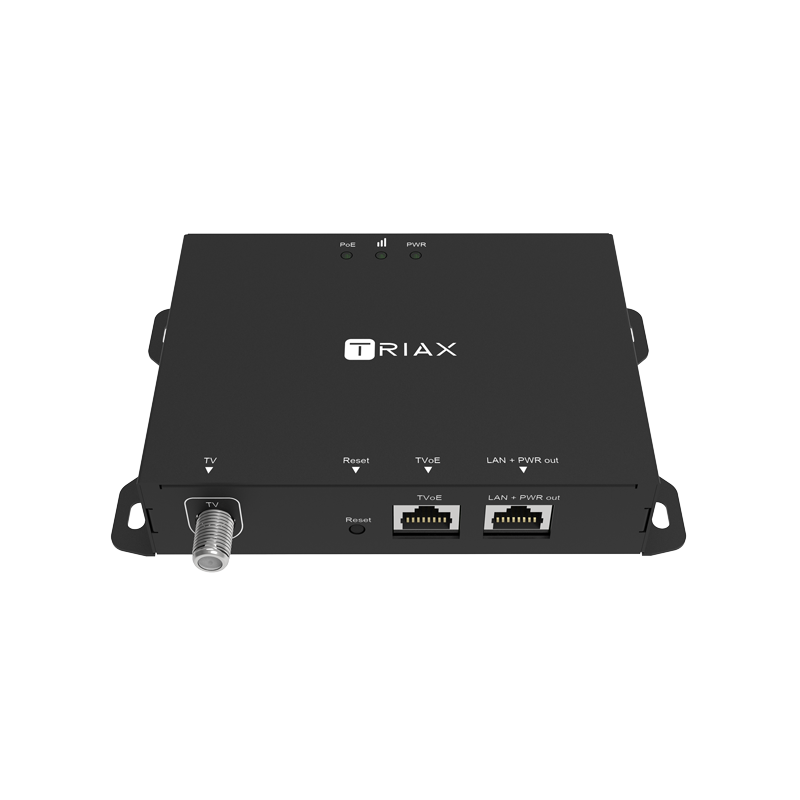

TVoE Rx+ Receiver Triax

The TVoE Receiver Plus (TVoE-Rx+) is intended for use where PoE is required at the TVoE Receiver to power local IP devices.

Can be used on a system with a mix of TVoE standard and “plus” TVoE receivers as required. When used, a larger 96W PSU MUST be used.

TVoE LAN port: Receives the TV and Internet combined signal along with 48V DC PoE to power the device.
TV F female connector: Delivers TV signal to the display device.
LAN+PWR Out LAN port: Transmits the Internet signal and 48V DC power to a PoE-enabled networking device. * This port complies with the IEEE 802.3af PoE (Power over Ethernet) standard and supports Class 3.

Link Indicator: Displays the connection status between the controller and the receiver.
PWR Indicator: Shows the power connection status.
RESET Button: Press and hold the button for more than 10 seconds to restore the system to its factory default settings

Forstærker til at konvertere:
coax til netværkskabler.

Ring for pris!

Antal

Køb

Varenummer	310711
Link til producent:	Triax

Manual

Datalbad

flyer

The TVoE Receiver Plus (TVoE-Rx+) is intended for use where PoE is required at the TVoE Receiver to power local IP devices.

Can be used on a system with a mix of TVoE standard and “plus” TVoE receivers as required. When used, a larger 96W PSU MUST be used.

TVoE LAN port: Receives the TV and Internet combined signal along with 48V DC PoE to power the device.
TV F female connector: Delivers TV signal to the display device.
LAN+PWR Out LAN port: Transmits the Internet signal and 48V DC power to a PoE-enabled networking device. * This port complies with the IEEE 802.3af PoE (Power over Ethernet) standard and supports Class 3.

Link Indicator: Displays the connection status between the controller and the receiver.
PWR Indicator: Shows the power connection status.
RESET Button: Press and hold the button for more than 10 seconds to restore the system to its factory default settings
